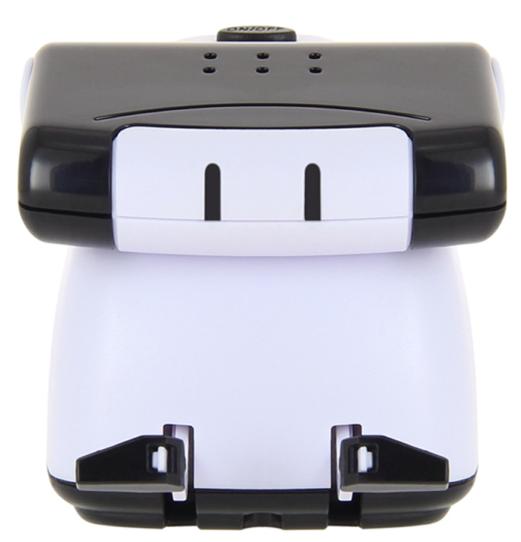

Picture of iPhone Android Hockey Sumo Soccer Smart Robot

iPhone Android Hockey Sumo Soccer Smart Robot

SKU: FS981974
iPhone Android Hockey Sumo Soccer Smart Robot
Reproduction is welcome and allowed for free circulation only.


Product Overview

59966

Summary

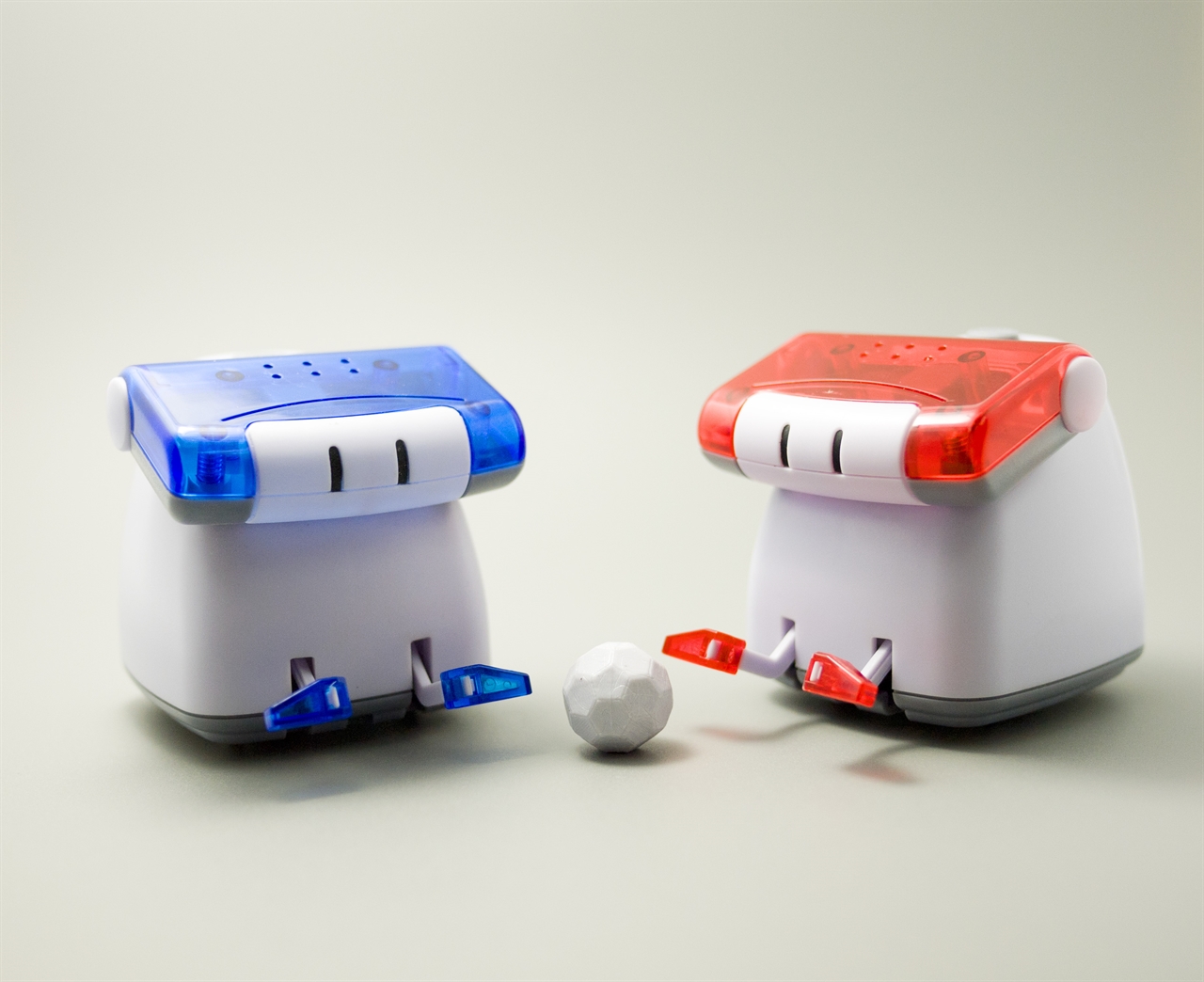

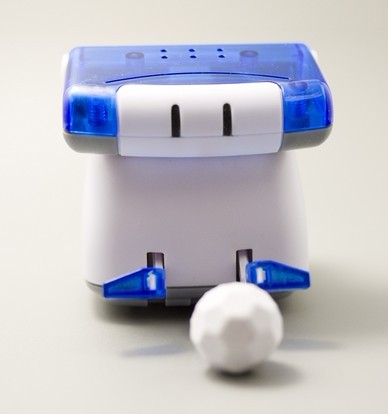

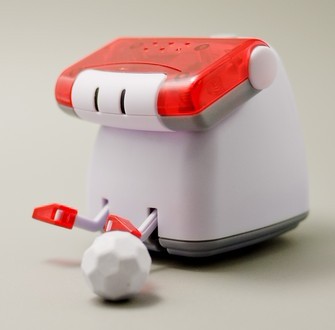

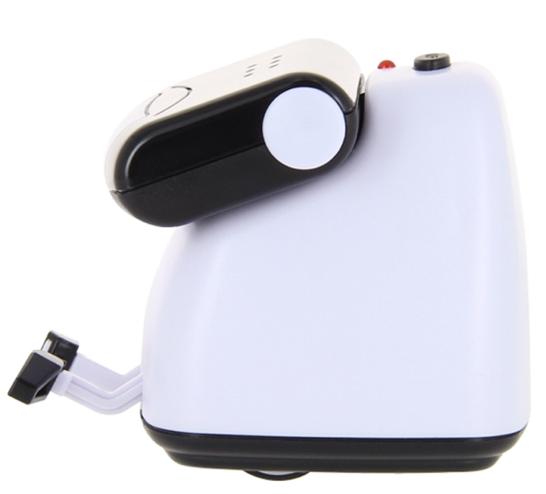

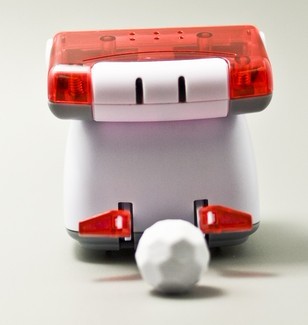

The Bluetooth Mini Robot can be controlled directly from your Smartphone using the specific BeeWi BotPad application available on line on AppStore or Google Play. The Bluetooth Mini Robot works as a remote controlled robot and it can be moved in all directions including left/right and forward/ backward directions. You can play various ball games as well as Sumo games using the battling arms to kick the ball or another Mini Robot. You can also combine multiple robots, each one being controlled by a single player, using either iOS or Android devices. The application provided allows for both touch screen and motion control, offering a funnier, richer and more user friendly experience. The Mini Robot is Bluetooth 3.0 compliant and it is compatible with all Bluetooth compliant iOS devices using Wireless iAp protocol such as iPod touch (G3 and above), iPhone (3G and above) and iPad as well as Bluetooth compliant Android devices using Bluetooth SPP profile.

Product Features

  • Remote Controlled Mini Robot with 2 independent motors
  • Fully controlled by a Smartphone using Bluetooth Radio
  • Forward/backward, left/right movement, fixed position rotation
  • Use 2 standard AAA batteries
  • User friendly Smartphone app for iOS and Android mobile devices
  • Motion & Touch Key Control modes
  • Multi-Level Control with variable speed
  • Typical range, 10 meter

Product Extra

Warranty

2 year warranty

Return to Entatech for replacement.

If replacement is not available then credit will be given

INTRODUCTION
The Bluetooth mini Robot can be controlled directly from your Smartphone using the specific BeeWi
BotPad application available on line on AppStore or Google Play. The Bluetooth mini Robot works
as a remote controlled robot and it can be moved in all directions including left/right and forward/

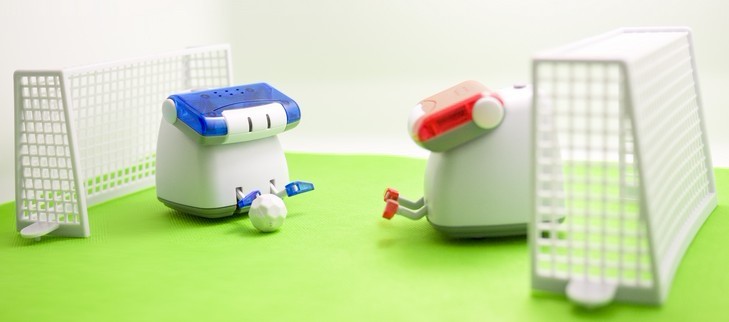

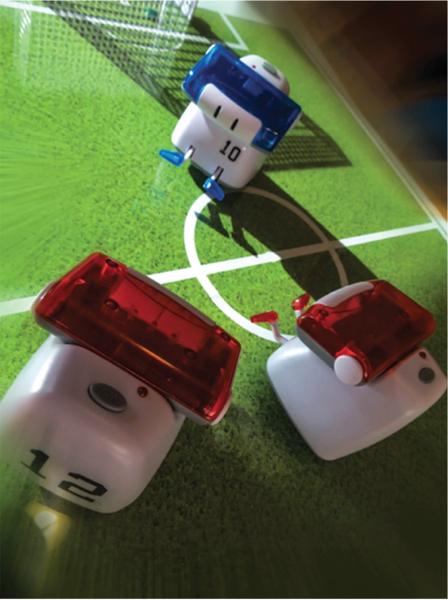

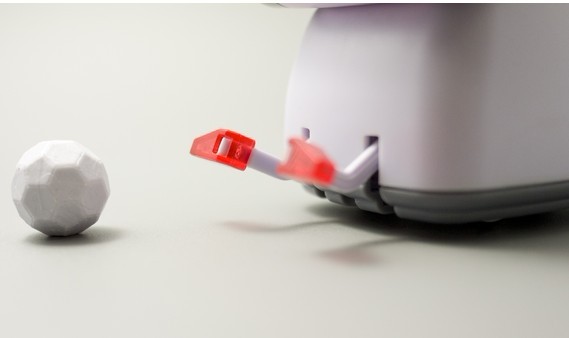

backward directions. You can play various ball games as well as Sumo games using the battling
arms to kick the ball or another mini Robot. You can also combine multiple robots, each one
being controlled by a single player, using either iOS or Android devices. The application provided
allows for both touch screen and motion control, offering a funnier, richer and more user friendly
experience.
The mini Robot is Bluetooth 3.0 compliant and it is compatible with all Bluetooth compliant iOS
devices using Wireless iAp protocol such as iPod touch (G3 and above), iPhone (3G and above)
and iPad as well as Bluetooth compliant Android devices using Bluetooth SPP profile.

1. PRODUCT DESCRIPTION
1.1. Package Content
- Bluetooth mini Robot

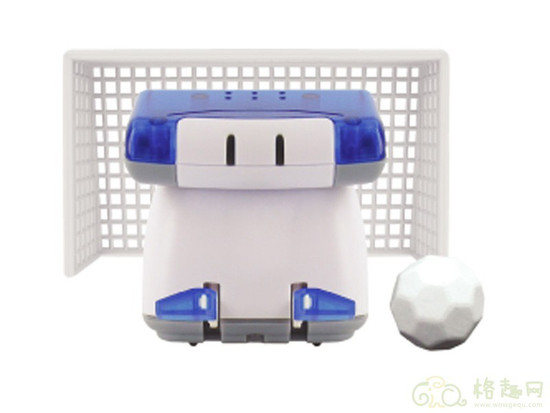

- Soccer Ball and Goal
- Personalization Sticker
- Quick Start Guide
1.2. main Features
- Remote Controlled mini Robot with 2 independent motors
- Fully controlled by a Smartphone using Bluetooth Radio
- Forward/backward, left/right movement, fixed position rotation
- Use 2 standard AAA batteries
- User friendly Smartphone app for iOS and Android mobile devices
- motion & Touch Key Control modes
- multi-Level Control with variable speed
- Typical range, 10 meter

1.4. Product Specification
2. INITIAL SETTINGS
2.1. Battery Installation
Before using the product, you must insert 2 AAA batteries in the battery slot at the bottom
of the product.
Unscrew the battery door and fit the 2 AAA batteries respecting the polarity.
2.2. App Installation
Go to iTunes or GooglePlay and look for “BeeWi BotPad” app. Follow the on-screen
indications to download and install the app. Once the application has been successfully
installed, you can launch it directly. make sure the mini Robot has been paired and
connected prior to start the application.
2.3. Pairing
To pair the mini Robot with your Smartphone, refer to the pairing procedures in your
Smartphone user manual and follow the instructions below:
- Power on the mini Robot and wait 30 seconds for it to be turned in pairing mode
- In the Smartphone Bluetooth menu, search for devices, select the device name “BeeWi
BBZ150” to pair it. When prompted, enter the passkey “0000”.
Warning: the mini Robot will not turn in pairing mode if it has been previously paired and
is automatically connecting to another device.
BLUETOOTH VERSION Bluetooth 3.0
BLUETOOTH RANGE Class 2, 10 m typical, up to 10 m
PROTOCOL Wireless iAp, SPP
BATTERY 2 x AAA (not included)
TYPICAL USE TImE 8 h
SERVO CONTROLS 2 independent motors
DImENSIONS W62 x H62 x D77
WEIGHT 68 g

3. USING THE MINI ROBOT
3.1. Connection with iPhone
If it has been previously paired, the mini Robot will automatically connect to the iPhone
when it is powered on. If this is not the case, you can also go to the iPhone Bluetooth
menu and select the “BeeWi BBZ150” device in your device list.
If you are using 2 different Robots with the same device, always make sure there is only
one connected at a time or the application will malfunction.
3.2. iPhone User Interface
Once the connection is made, the app will launch automatically. You can also launch it
directly from the iPhone main screen.
The mini Robot will be connected automatically and the control screen below displayed.
By default the control is mOTION and the trimmer is set to “0”.

 1.Battery meter
 2.Direction wheel (only in TOUCH mode)
 3.Trimmer
 4.Settings bar
 5.SPEED: SLOW or FAST speed
 6.CONTROL: mOTION or TOUCH
3.3. Connection with Android Smartphone
When the BeeWi BotPad application is launched, it will automatically connect the mini
Robot it has been previously connected.
To connect manually the mini Robot, display the application menu using the mobile option
key, then press the button CONNECTION to see the list of paired devices.

make sure your mini Robot is turned on and select it in the list. The mini Robot will be
connected automatically and the control screen below displayed.
3.4. Android User Interface
When the mini Robot is connected, you can access the control screen below. By default
the control is motion and the trimmer is set to “0”

3.5. Operations
Adjust the direction using the TRIm buttons before using the mini Robot. Select Touch
control and gently push the joystick upward until the Robot moves in the forward direction.
Then use the TRIm button to adjust the direction and make sure there is no drift on the left
or the right. Once the direction is properly trimmed, you can start to use the product. It is
recommended to use the SLOW mode with smoother and lower speed commands to start
with.
In motion control the commands are the following:
- To move forward, tilt the Smartphone forward
- To move backward, tilt the Smartphone towards yourself
- To turn left, turn the Smartphone leftwards
- To turn right, turn the Smartphone rightwards
In Touch control, the commands are the following:
- To move forward, slide the engine bar up
- To move backward, slide the engine bar down
- To turn left, slide the direction bar left
- To turn right, slide the direction bar right
3.5. Configuration
The configuration menu can be accessed by sliding down the SETTINGS bar on the top or
pressing the Option button. There are different options listed in the Settings:
- CONTROL: to select either mOTION or TOUCH control modes.
- mODE : to select either SLOW or FAST speeds
On Android device, another option button “CONNECTION” is provided to pair ou
manually connect a mini Robot.
The default settings are mOTION & SLOW, but your preferred settings will be saved.

5. CAUTIONS & MAINTENANCE
WARNING!
• Please read carefully the complete manual and strictly follow the instructions given
before using the product.
• This product is not suitable for children under 14 years old.
• This product is not suitable for children under 3 years old – risks of small parts breaking
off and potential choking hazard.
• Do not disassemble or rework the product as this may cause damage and void the
warranty.
CAUTION
• Do not mix old and new batteries together. Do not mix battery type or brands.
• Only batteries of the same or equivalent type as recommended are to be used.
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the toy before being charged.
• Rechargeable batteries are only to be charged under adult supervision.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the toy.
• The supply terminals are not to be short-circuited.
• Please keep this information for future reference.
USE AND MAINTENANCE
• Do not operate the product outdoor, or on a wet or dirty surface.
• Use the product with care and avoid throwing, crashing or twisting it.
• Do not leave the product near sources of heat or in wet environment conditions for a
long time.
DAMAGES NOT COvERED By THE STANDARD WARRANTy:
• Damages that are caused by a improper use of the toy (shocks, drops, heat, misuse, etc)
• Damages resulting from any non-compliance with manufacturer instructions
• Cosmetic damages (scratches, ...)
• Components and parts which require regular renewal
• Damages to the toy after an intervention by any person not authorized by BeeWi
