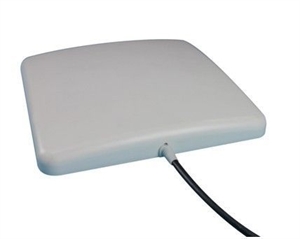

Product Name	3400-3700MHzpanel antenna
Description	GA-SP(3400-3700)-14: The panel antenna is designed for wireless access system. Which through optimization design and careful debugging with follow qualities: good standing wave performance,high gain,broad band,big F/B ratio,strong structure,own the good ability of antihunting,waterproof and anticorrosion; Small size,easy installation,the directional diagram will be unacted whether installate on iron tower or roof.
Electric Specification
Model NO	GA-SP(3400-3700)-14
Frequency Range-MHz	3400-3700
Bandwidth MHz	300
Gain-dBi	14
HorizontalBear width °	35
VerticalBear width °	32
F/B Ratio	≥17
VSWR	≤1.5
InputImpedance -Ω	50
Polarization	Vertical
MaximumPower -W	20
Connector	SMA male
Mechanical Specifications
Dimensions-mm	190X190X35
Weight-kg	0.8
