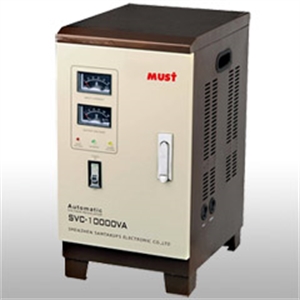

Picture of SVC Series 1KVA-20KVA voltage regulator

SVC Series 1KVA-20KVA voltage regulator

SKU: FS00018882
Reproduction is welcome and allowed for free circulation only.

Application:

High quality and availability of energy adapted to suit specific critical needs,covering a vast range of applications.

Applied tocomputer network project,electronic instruments,armarium,research institute,measurement and test device,factory test board and so on. It is widely used in the fields of domestic appliance, industry and agriculture production,scientific research,medicine and health.

Manual Main Features:

The high accuracy full automatic AC regulated power source is composed of servo motor,control circuit,compensator(or compensated transformer).

It has advantages of small volume,light weight,high efficiency,wide voltage stabilizing range,no waveform distortion etc.

All products are provided with over-voltage/under-voltage protection,delay(selective) protection,error protection and voltage two-way indication. Which makes the function of the product more perfect and reliable.

It is widely used in the fields of domestic appliance, industry and agriculture production,scientific research,medicine and health, it is a kind of regulated power source with the highest ratio of performance to price at present.

Specifications:

MODEL SVC-1000VA SVC-2000VA SVC-3000VA SVC-5000VA SVC-10KVA SVC-15KVA SVC-20KVA
CAPACITY 1VA/800W 2KVA/1.6KW 3KVA/2.4KW 5KVA/4KW 10KVA/8KW 15KVA/12KW 20KVA/16KW
INPUT
Voltage AC180V-250V AC180V-250V AC-180V-264V
Frequency 50Hz
Phase single phase
OUTPUT
Output Voltage AC220V±1%,3%,5% Selectable
Frequency 50Hz
Output Current 4.5A 9.0A 13.5A 22.5A 40A 60A 80A
AC to AC
Delay 3-7sec/3-7min selectable
Over Voltage AC246V±4V
Low Voltage AC184V±4V
Over heat (Optional)
Cooling system NO Natural cooling(Optional)
By pass NO Optional
Over load/short Circuit YES
EFFICIENCY
AC to AC >95%
PHYSICAL
Dimension, D X W X H (mm) (@ vertically stand) 200*15*60 240*15*80 240*17*80 370*20*50 380*40*50 380*40*50 380*40*60
Net Weight (kgs) 8 14 16 25 40 52 65
OPERATING ENVIRONMENT
Humidity 20-90 % RH @ -5°C- 45°C (non-condensing)
Noise Level Less than 40dB
. Different specifications required are available.
. All specifications mentioned above are subject to change without prior notice.
