Picture of ADJUSTABLE TV MOUNT TV HANGER 32-60 inch

ADJUSTABLE TV MOUNT TV HANGER 32-60 inch

SKU: FS9100266

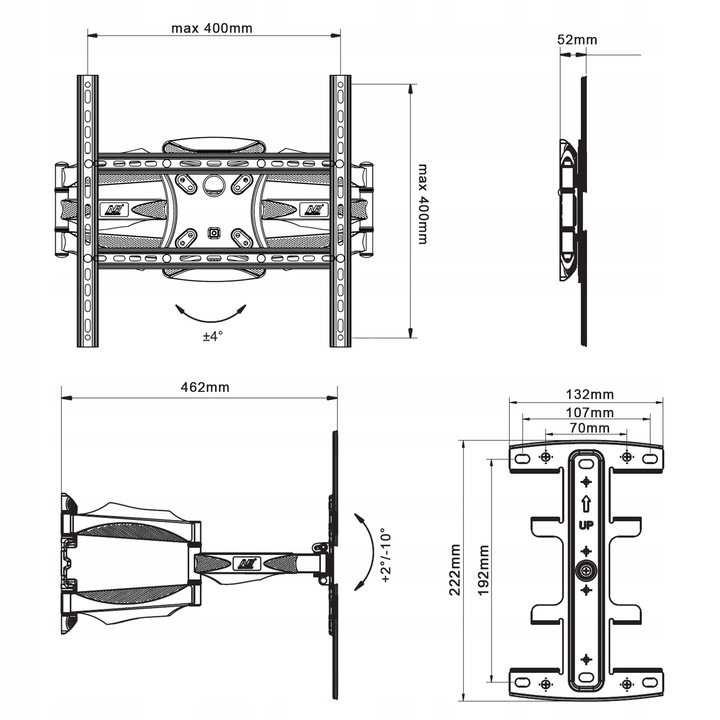

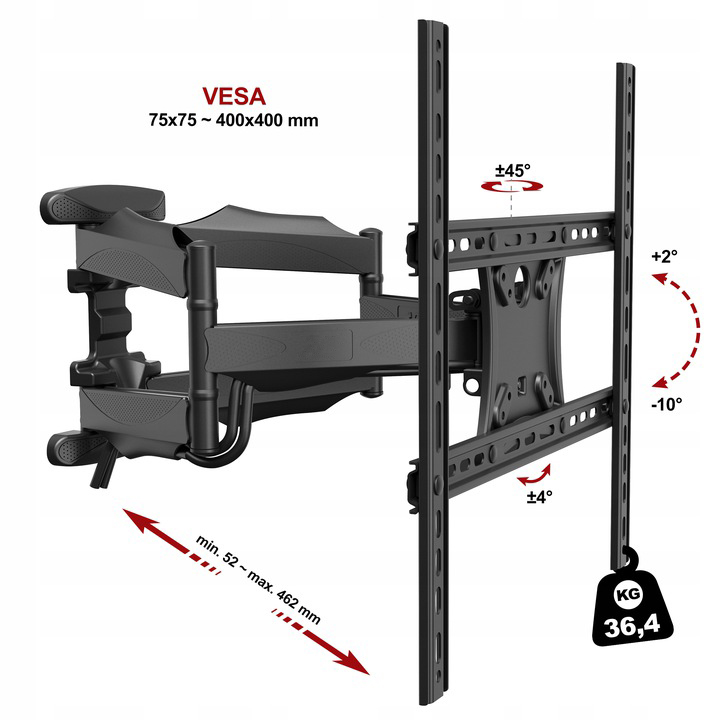

Rotation adjustment up to: 160 ° tilt adjustment: -10 ° / + 2 °
Reproduction is welcome and allowed for free circulation only.


ADJUSTABLE TV MOUNT TV HANGER 32-60 inch

Description

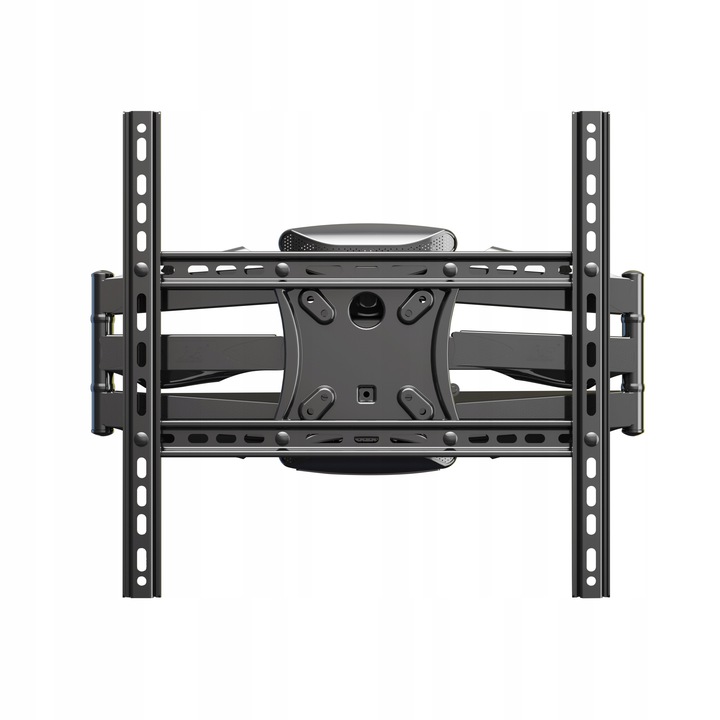

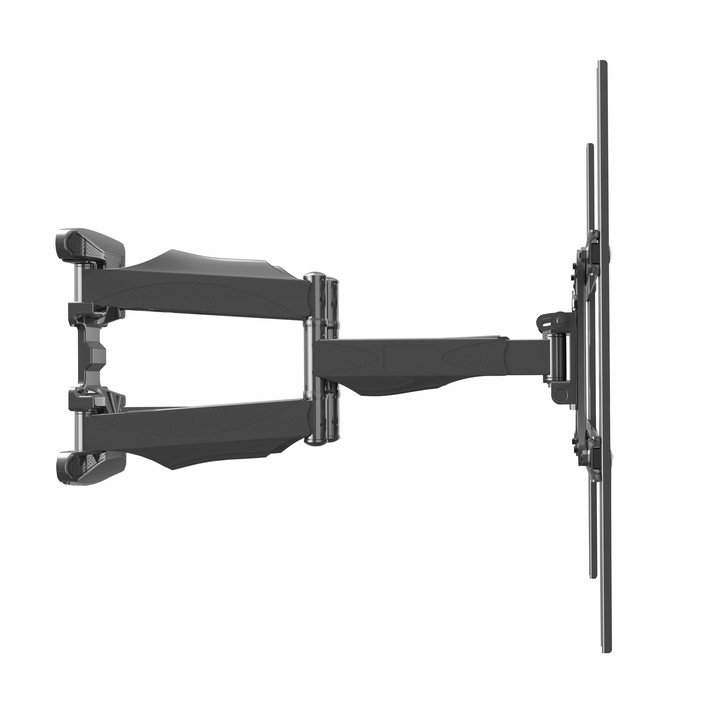

A sturdy rotating bracket for LED LCD TVs
TV size: 32 "- 60"
maximum TV weight: 36.4 kg
VESA max: 400x400 mm
rotation adjustment up to: 160 °
tilt adjustment: -10 ° / + 2 °
adjustable distance from the wall: 52 ~ 462mm
cable management system

CHARACTERISTIC
designed for 32 "- 60" Plazma LCD LED TVs
universal adjustable flat TV mount weighing up to 36.4 kg
high-quality workmanship with attention to detail
unique design
tilt adjustment
double swivel arm
short distance from the wall
tilt correction (reduction of assembly errors)
compliant with the VESA standard
cable management system
a cover that covers the mounting screws and cables
very solid workmanship
available in black

TECHNICAL PARAMETERS
max. lifting capacity 36.4 kg
for 32 "- 60" TVs
rotation adjustment up to 160 °
tilt adjustment: -10 ° down / + 2 ° up
± 4 ° screen tilt correction
adjustable distance from the wall in the range of 52 ~ 462mm
VESA compatible (mounting hole spacing) standard:
VESA 75 (75mm x 75mm hole spacing)
VESA 100 (100mm x 100mm hole spacing)
VESA 150 (150mm x 150mm hole spacing)
VESA 200x100 (200mm x 100mm hole spacing)
VESA 200 (200mm x 200mm hole spacing)
VESA 200x400 (200mm x 400mm hole spacing)
VESA 300 (hole spacing 300mm x 300mm)
VESA 400x200 (400mm x 200mm hole spacing)
VESA 400 (400mm x 400mm hole spacing)
and all the others in the range 200x200 ~ 400x400mm

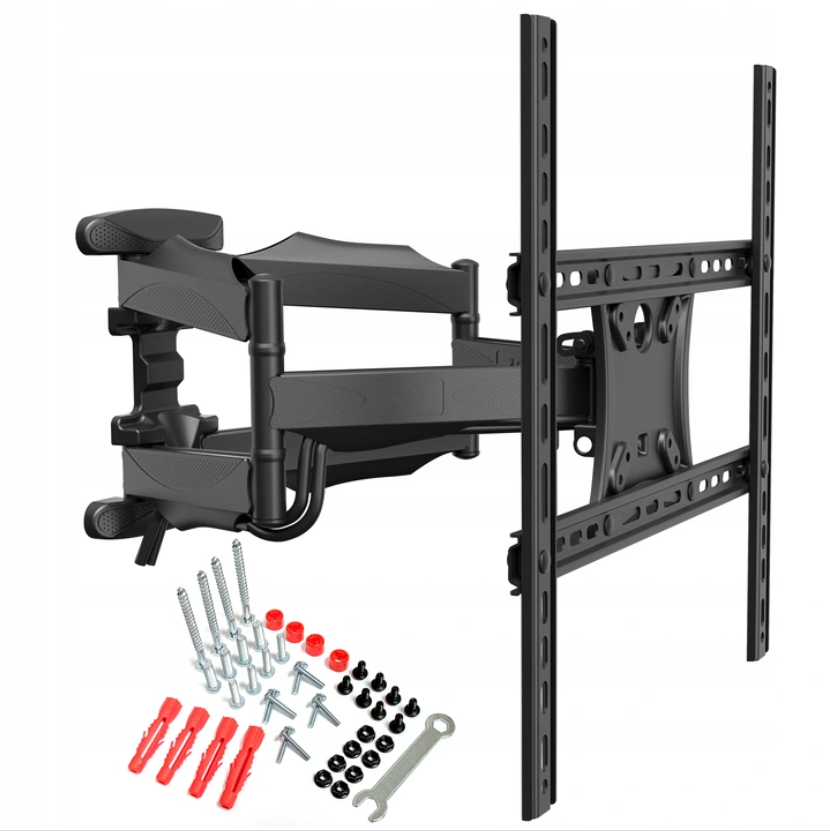

MOUNTING KIT
Screw M4 × 25mm - 4 pcs.
Screw M5 × 25mm - 4 pcs.
Screw M6 × 25mm - 4 pcs.
Screw M8 × 25mm - 4 pcs.
Washer - 4 pcs.
Distance - 4 pcs.
10mm wrench - 1 pc.
Screw 7 × 70mm - 4 pcs.
Dowel Ø10 × Ø7 × 60mm - 4 pcs

SET COMPOSITION
handle
set of screws *
installation instructions
* standard / universal screws suitable for most televisions are included, if they do not fit, you need to buy the appropriate screws on your own!

How to check if the bracket will fit the TV?
When choosing the right TV mount, you should first of all pay attention to the weight of the TV and the spacing of the VESA mounting holes, the size of the screen itself is indicative. For information on the TV's VESA compliance, see the user manual. You can also check and measure the spacing of the holes yourself.

The VESA standard specifies the locations of the four mounting holes on the back of the TV. The spacing of these holes depends on the make, model and size of the screen. Dimensions are given in millimeters: the first parameter specifies the distance between the holes horizontally (left - right), and the second parameter specifies the distance between the mounting holes vertically (top - bottom).
