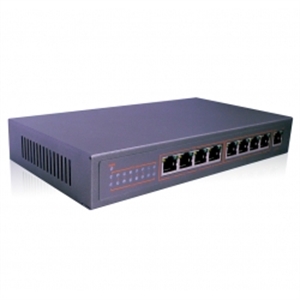

8-Port PoE Switch

SKU: FS00040032

8-Port PoE Switch

Reproduction is welcome and allowed for free circulation only.

ø Support through the super five kind of UTP etheric line power supply

ø support standard IEEE802.3 af/at power supply

ø power supply farthest distance of 150 meters (use a shield UTP line)

ø small, compact, mute design suitable for placed on the desktop or wall

ø zero configuration characteristic power is automatically supplied to the adaptive equipment

ø conform to the IEEE 802.3 I 10 base-t and IEEE 802.3 u 100 base-t TX standard

ø eight 10/100 m adaptive RJ45 port

ø support port automatic flip (Auto MDI/MDIX)

ø support ascending port lightning protection (port and to achieve the secondary lightning protection requirement)

ø support port isolation

ø maximum PoE power: 124 w (all PoE port, port 1 ~ port 8)

ø maximum power supply power: 144 w,48V 3 A DC power output

ø the store and forward exchange mechanism

ø all port support line speed exchange, 64 ~ 1536 frames long range may achieve line speed

ø no fan, natural cooling

project		parameters
Power support	Power supply mode	Power adapter
	Adapt to the voltage range	44-57VDC
	Power consumption	Exchange the maximum power:144W144W： - PoE Power the maximum power:124W (124W port1-8) Power output: - 48VDC, 3A
Transmission rate	The first 1-8mouth	100M
Transmission distance	The first 1-8mouth	UTPNot shielded twisted-pair cable150mmaximum
Ethernet related performance and parameters	Signal input/output interface	RJ45socket
	Transmission signal types	Ethernet signal
	Forwarding mode	store-and-forward
	Network protocol and standard compatible	- IEEE 802.3i 10BASE-T- - IEEE 802.3u 100BASE-TX - IEEE 802.3x Flow Control - IEEE 802.1af DTE Power via MDI
	Performance specification	Bandwidth:1.6Gbps (No block) Network delay (100 to 100M bps)：the maximum delay less than : 2020 microseconds Packet buffer memory: 96KB Address database size: 1,000
LED lamp	Power light	one(green)
		one (green) display equipment operation,The green light, Said the current port has access, flicker said is data transmission.
	Connection lamp	eight (green) display equipment operation, The green light, Said the current port has access, flicker said is data transmission.
Physical properties	Size （L* W * H）	278x177x40(mm)
Physical properties	material	Iron material
Working environment	Working temperature	0-55℃
	Storage temperature	-20-88℃℃
	humidity	0-95% No condensation
