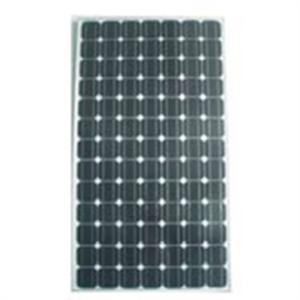

Image de MONO Solar Panel GYM 5W-200W

MONO Solar Panel GYM 5W-200W

SKU: FS00018925
Reproduction is welcome and allowed for free circulation only.

Technical Specifications 5W-200W
Temperature Coefficients of Isc(%)��0.04
Temperature Coefficients of Voc(%)��-0.33
Temperature Coefficients of Pm(%)��0.047
Temperature Coefficients of Im(%)��0.04
Temperature Coefficients of Vm(%)��-0.38
Temperature Range-40eC to +85eC
Tolerance Wattage(e.g.+/-5%)��3%
Surface Maximum Load Capacity2400Pa
Allowable Hail Load23m/s ,7.53g
Junction Box TypePass the TUV Certificate
Bypass Diode Rating(A)5w to 125w:10,130w to 280w:12
Caple & Connector TypePass the TUV Certificate
Backing (Brand Type)TPT
Warranty90% of 10 years,80% of 25 years.
Standard Test ConditionsAM1.5 1000W/ 25 +/-2��
FF (%)70-76%
Technical Specifications different Capacity

Model

Max power

Cell Size

Cell Array

Cell Efficiency

Max

Max

Short

Open

Dimension

Weight

(W)

��mm��

(academic)

Power

Power

Circuit

Circuit

(mm)

(K)

Current(A)IMP

Voltage(V) VMP

Current(A)ISC

Voltage(V)VOC

GYM5-36

5

62.5X13.75

4X9

10.32%

0.29

17.2

0.35

20.9

345X168X25

0.8

GYM8-36

8

62.5X20.6

4X9

11.13%

0.46

17.3

0.52

20.9

470X168X25

1.2

GYM10-36

10

62.5X41.9

4X9

11.00%

0.57

17.4

0.64

21

345X300X25

1.5

GYM15-36

15

62.5X41.9

4X9

16.30%

0.84

17.8

0.95

22.1

345X300X25

1.5

GYM20-36

20

62.5X62.5

6X6

14.60%

1.16

17.5

1.27

21

345X300X25

2.5

GYM25-36

25

62.5X62.5

6X6

18.10%

1.36

18.4

1.49

22.4

440X420X25

2.5

GYM30-36

30

125X62.5

4X9

11.00%

1.89

15.9

2.24

21.1

625X533X25

3.7

GYM35-36

35

125X62.5

4X9

12.85%

2.09

16.7

2.39

21.6

625X533X25

3.7

GYM40-36

40

125X62.5

4X9

14.60%

2.28

17.5

2.54

21.9

625X533X25

3.7

GYM45-36

45

125X62.5

4X9

16.40%

2.49

18.1

2.65

22.3

625X533X25

3.7

GYM45-72

45

125X41.6

4X18

12.50%

2.72

16.6

3.02

21.5

860X541X35

6

GYM50-72

50

125X41.6

4X18

13.70%

2.92

17.1

3.26

21.7

860X541X35

6

GYM55-72

55

125X41.6

4X18

15.10%

3.09

17.9

3.41

22

846X552X35

6

GYM60-72

60

125X41.6

4X18

16.40%

3.27

18.4

3.54

22.2

846X552X35

6

GYM65-72

65

125X41.6

4X18

17.80%

3.51

18.52

3.66

22.4

846X552X35

6

GYM70-36

70

125X125

4X9

12.80%

4.11

17

4.7

21.7

1200X552X35

7.5

GYM75-36

75

125X125

4X9

13.80%

4.38

17.1

4.89

21.7

1200X552X35

7.5

GYM80-36

80

125X125

4X9

14.60%

4.56

17.5

5.07

21.9

1200X552X35

7.5

GYM85-36

85

125X125

4X9

15.50%

4.73

18

5.21

22

1200X552X35

7.8

GYM90-36

90

125X125

4X9

16.40%

4.9

18.4

5.3

22.2

1200X552X35

7.8

GYM95-36

95

125X125

4X9

17.20%

5.08

18.7

5.48

22.4

1200X552X35

7.8

GYM100-36

100

125X125

4X9

18.10%

5.67

17.7

6.35

21.2

1200X552X35

8

GYM120-36

120

125X125

4X9

14.20%

6.66

18

7.45

21.6

1480X552X35

12

GYM125-36

125

156X156

4X9

14.70%

7.1

17.6

7.75

22.1

1482X676X35

12

GYM130-36

130

156X156

4X9

15.20%

7.39

17.6

7.92

22.2

1482X676X35

12

GYM135-36

135

156X156

4X9

15.80%

7.59

17.8

8.06

22.3

1482X676X35

12

GYM140-36

140

156X156

4X9

16.50%

7.78

18

8.45

22.3

1482X676X35

12

GYM145-36

145

156X156

4X9

17.00%

8.01

18.1

8.69

22.3

1482X676X35

12

GYM150-36

150

156X156

4X9

17.50%

8.24

18.2

8.91

22.4

1482X676X35

12

GYM165-72

165

125X125

6X12

15.00%

4.66

35.4

5.22

42.5

1580X808X35

15.5

GYM170-72

170

125X125

6X12

15.60%

4.78

35.6

5.35

42.7

1580X808X35

15.5

GYM175-72

175

125X125

6X12

16.00%

4.87

35.9

5.45

43.1

1580X808X35

15.5

GYM180-72

180

125X125

6X12

16.50%

4.99

36.1

5.59

43.3

1580X808X35

15.5

GYM185-72

185

125X125

6X12

16.80%

5.11

36.2

5.72

43.4

1580X808X35

15.5

GYM190-72

190

125X125

6X12

17.20%

5.23

36.3

5.86

43.5

1580X808X35

15.5

GYM195-72

195

125X125

6X12

17.80%

5.37

36.4

6.01

43.6

1580X808X35

15.5

GYM200-72

200

125X125

6X12

18.10%

5.41

37.2

6.11

44.8

1580X808X35

15.5

ATTENTION

OEM/ODM is welcome

the specs are subject to change without notice at anytime

For the more details for different mode, pls connect with KEMAPOWER
