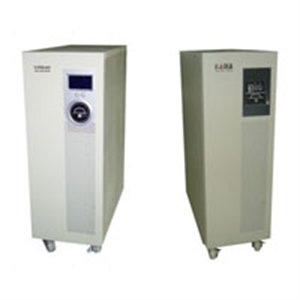

Picture of High Frequency Online UPS  3C10-20K

High Frequency Online UPS 3C10-20K

SKU: FS00018893
Reproduction is welcome and allowed for free circulation only.

Key Features

��High frequency and double conversion on-line technology

��Input three phase, output one phase

��True online double conversion technology

��IGBT inverter design

��Fully digitized microprocessor control

��Wide input voltage range

��Zero transfer time

��Generator compatible

��Overload, on-line, battery status LED

��Advanced PFC technology

��Self-testing when UPS startup

��Advanced battery management

��Automatic battery charging in UPS off mode

��Short circuit and overload protection

��Smart RS232 communication with monitoring software

��Battery voltage and load capacity display

��SNMP card is option

��LCD display is option


Technical Specifications

Item

Model

3C10K

3C15K

3C20K

Capacity

VA / Watts

10KVA / 7KW

15KVA / 10.5 KW

20KVA / 14KW

Input

Normal voltage

380VAC (Three phases four lines)

Voltage range

304 ~ 478VAC

Frequency range

46 ~ 54Hz

Current

220A max

Power factor

��0.95

Output

Voltage range

220VAC �� 1%

Frequency range

Synchronized, 46~54Hz(Line mode)

50Hz �� 0.1% (Battery mode)

Wave form

Pure Sine Wave

Overload capacity

105%-130% for 10 min

current crest ratio

3:l

Transfer Time

0 ms

Battery & Charger

type

External battery bank

Nominal voltage

240VDC

Battery

External

External

External

LED Indicators

Status

Load level / Battery level, Battery, Utility Power, Inverter, Bypass, Overload, Fault

Audible Alarms

On battery mode, Battery low, Overload, Fault

Communications Interface

RS-232 Serial Interface (DB-9)

Environment

Operating temperature

0 ~ 40oC

Operating humidity

20 ~ 90% non-condensing

Package dimension

WxDxH (mm)

710*440*860

710*440*860

710*440*860

Package size

WxDxH (mm)

710*440*960

710*440*960

710*440*960

Package weight

Gross weight(Kg)

101/48

65

65

REMARK

��

LCD Display is option
