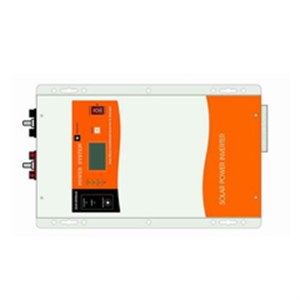

Application:

Applied in the field of industrial process controls, battery charging requirements, solar system.Camping & Outdoors, Renewable Newsletter,

Manual Main Features:

•12v/24vdc input optional

•Max. AC charger current 70A(Optional)

•Inbuilt pure copper transformer

•Pure sine wave output

•LCD status display

•MPPT solar controller 20A~40A

•50Hz/60Hz automatic

•RS232 with free CD(optional)

•Battery priority function

Specifications:

Model	PV1012C	PV1024C	PV2012C	PV2024C	PV3012C	PV3024C
Rated Output Power(W)	1000		2000		3000
Line mode specifications
Input Voltage	12V	24V	12V	24V	12V	24V
Input Frequency	50Hz@40-80Hz/60Hz@40-80Hz
Output Voltage Waveform	Pure Sine Wave
Output Short Circuit Protection	Current limit (Fault after 10s)
Inverter Mode Specifications
Output Voltage Waveform	Pure Sine Wave
Power Factor	1
Output Voltage (V)	110Vac/120Vac/220Vac/230Vac ±10%
Output Frequency (Hz)	60Hz ± 0.3Hz / 50Hz ± 0.3Hz
Auto Tracking Main Frequency	Yes (Following main first connection);50Hz @40-80Hz;60Hz @40-80Hz
Output Voltage Regulation	±10% rms
Efficiency	>80%
Over-Load Protection	(110%<load<125%) ±10%: Fault (shutdown output) after 15 minutes; (125%<load<150%) ±10%: Fault (shutdown output) after 60s; Load>150 ±10%: Fault (shutdown output) after 20s
Surge Rating	3000VA		6000VA		9000VA
Capable Of Starting Electric Motor	1HP		1HP		2HP
Inverter Breaker Size	10A		30A
DC Input Voltage	12V	24V	12V	24V	12V	24V
Min DC Start Voltage	11V/22V
Low Battery Alarm	10.5Vdc ± 0.3Vdc for 12V battery; 21.0Vdc ± 0.6Vdc for 24V battery
Low DC Input Shut-Down	10.0Vdc ± 0.3Vdc for 12V battery; 20.0Vdc ± 0.6Vdc for 24V battery
High DC Input Alarm & Fault	16.0Vdc ± 0.3Vdc for 12V battery; 32.0Vdc ± 0.6Vdc for 24V battery
High DC Input Recovery	15.5Vdc ± 0.3Vdc for 12V battery; 31.0Vdc ± 0.6Vdc for 24V battery
Power Saver	Load ≤ 25W
Charger Mode Specifications
Input Voltage	110Vac/120Vac/220Vac/230Vac
Input Voltage Range	96~127Vac/ 155~265Vac
Output Voltage	110Vac/120Vac/220Vac/230Vac ±10%
Charge Current
Charge Current Regulation	Charge Current Adjustable: 25%, 50%, 75%, 100%. (Optional)
Battery Initial Voltage	0-15.7Vdc / 31.4Vdc (can operate with 0V battery)
Charger Short Circuit Protection	Circuit breaker
Over Charge Protection	Bat. V ≥15.7Vdc/ 31.4Vdc , beeps 0.5s every 1s & fault after 60s
General Specifications
Certification	CE / Soncap / ISO9001
Operating Temperature Range	0°Cto 40°C
Storage Temperature	-15°C to 60°C
Operation Humidity	5% to 95%
Audible Noise	60dB max
Cooling	Forced air, variable speed fan
Size	1012C / 1024C / 2012C / 2024C / 3012C / 3024C: 460x260x185MM
Gross Weight	21KG		26KG		29.8KG

MPPT solar controller function
Rated voltage	12/24V DC
Rated charge current	40A
Load current	15A
Input voltage range	15-55V DC
Max. PV open circuit array voltage	55V DC
Typical idle consumption	At idle< 10mA
Overload protection(DC load)	2.0*Inom>5s; 1.5*Inom>20s; 1.25*Inom temperature controlled
Bulk charge	14.6V(default)	29.2V(default)
Floating charge	13.4V(default)	26.8V(default)
Equalization charge	14.0V(default)	28.0V(default)
Over charge disconnection	14.8V	29.6V
Over charge recovery	13.6V	27.2V
Over discharge disconnection	10.8V(default)	21.6V(default)
Over discharge reconnection	12.3V	24.6V
Temperature compensation	13.2mV/C	26.4mV/C
Lead acid battery settings	Adjustable
NiCad battery settings	Adjustable
Load control mode	1.Low Voltage Reconnect(LVR):Adjustable;2.Low Voltage Disconnect(LVD):Automatic disconnection;3.Reconnection:Includes warning flash before disconnect and reconnection
Low voltage reconnect	12.0-14.0Vdc	24.0-28.0Vdc
low voltage disconnet	10.5-12.5Vdc	21.0-25.0Vdc
Ambient temperature	0 to 40°C (full load); 40-60°C (de-rating)
Altitude	Operating5000m, Non-Operating 16000m
Protection class	IP21
Battery temperature sensor	BTS-optional remote battery temperature sensor for increased charging precision
Terminal size(fine/single wire)	#8 AWG
