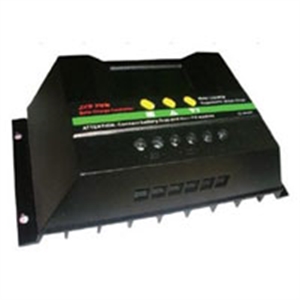

Solar Charger Controller LCD WP30

SKU: FS00018930
Reproduction is welcome and allowed for free circulation only.

Keyfeatures:
��Fully digitized microprocessor control ,use SCM

��Remote monitoring and control function

��Adjustable charge-discharge control parameters

��Provide longer battery life and improved system performance

��Series PWM charge mode State of Charge(SOC) battery regulation

��4stagescharging :Equalization,PWM,Boost Float
��LCD display for Charging,Discharging ,Battery&Solar Panel state and Load working Mode
��Overload and short circuit protection and resume when released

��
Battery low voltage disconnection Protection
��Reverse polarity protection for solar panel ,battery and DC load.

��Battery reverse-discharge protection at night




Technical Specifications

ITEM

MODEL

WP2024Z

WP3024Z

WP2048

WP3048

Rated charge current

20A

30A

20A

30A

Rated load current

20A

30A

20A

30A

System voltage

12/24V AUTO work

48V

Protection

Over load

��150% of rated current for 60 sec.for load and solar panel

Shortcircuit

Over 300%, shut offat noce.for load and solar panel

Over voltage

17V;2*17V;4*17V for DC load

Low Voltage Disconnection(LVD)

10.7V/21.4V

42.8V

Low Voltage Reconnection(LVR)

12.5V/25.0V

50.0V

Reverse polarity

protection for solar panel ,battery and DC load.

Reverse current

yes.at night

Lighting protection

yes

Static current

�� 30mA

Voltage drop

Loop Voltage Drop

��170mV

Charging voltage

Boost charging

14.8V; 2*14.8V;4*14.8V for 30 Mins.Only for Battery was over discharged.

Equalizing charging

14.4V; 2*14.4V ;4*14.4V for 30mins

Open Circuit Voltage of solar panel

��50V

��100V

Float charge

13.8V/27.6V

55.2V

Charging recovery

13.2V; 2*13.2V

Temperature compensation

-4mV/Cell/��

Battery low

12V; 2*12V;4*12V

Load disconnect voltage

11.4V; 2*11.4V;4*11.4V

Over discharge forced recovery

12.5V��25.0V��50V ( recovery by switch )

Charging control mode

PWM mode

Running temperature

-10��~ 60��

Storage temperature

-30��~ 70��

Humidity requirements

��90��,no condensation

Installation cable area

��7# AWG ( 16mm2)

Protection class

IP22

Case material

ABS

LCD display

Charging,Discharging , Battery & Solar Panel state and Load working Mode

Productsize(mm)

90 mm�� 188 mm�� 48 mm

Carton size(mm)

545*535* 220 mm

Carton weight(kg)

11.2KG / 30PCS

Notes

Model suffix ��Z�� represent automatic identify system voltage level,��T�� represent controller with remote monitoring.
